Sheet Metal Fabrication for OEM Manufacturers: One Order, Step by Step

Sheet metal fabrication for OEM manufacturers is easiest to judge by how you will actually experience it: one order, step by step. An OEM program isn’t a part and a price—it is a sequence of decisions, from the first RFQ to the hundredth shipment, and each step reveals something about the supplier behind it. This guide walks a single order through the journey and highlights what to watch for at every stage.

The right sheet metal fabrication for OEM manufacturers partner makes the journey boring in the best way: no surprises at the quote, no surprises at the prototype, no drift in production. Here is what that should look like — stage by stage, and what to check at each one.

Sheet Metal Fabrication for OEM Manufacturers: Before the Quote

The journey starts before you cut any metal. Three steps happen while your drawing is still a file.

Step 1: The RFQ

A good OEM order starts with a complete RFQ: material, tolerances, surface finish, annual volume, and the target batch size. The more the supplier knows, the more accurate the quote — and the annual volume, more than anything else, decides the tooling route.

Step 2: The DFM Review

A serious fabricator does not price your drawing on day one — it reviews it first. The process route is checked, bend radii and tolerances are questioned, and cost-driving features are flagged before they are quoted. DFM feedback before the quote is the cheapest insurance an OEM can buy.

Step 3: The Quote

Read the quote like a cost structure: tooling, material, process, finishing, and inspection as separate lines. Check the tooling amortization against your volume — and if a line is missing, expect it on a later invoice. Our cost and quoting guide shows how a complete quote is built and how to read one.

Sheet Metal Fabrication for OEM Manufacturers: From Prototype to Production

The quote is accepted; now the part becomes real. Three steps turn your drawing into a repeatable process.

Step 4: Prototype and FAI — OEM Sheet Metal Fabrication’s First Proof

The prototype is the first proof of the process, not the end. First-article inspection (FAI) per project requirements, critical dimensions measured on CMM at high accuracy, and a sample you can assemble and test. Our prototype fabrication guide covers what a proper sample program looks like.

Step 5: Tooling

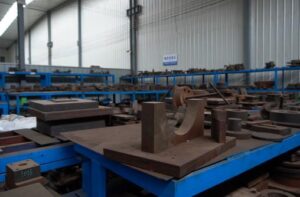

Tooling is the biggest single investment in the order, and it deserves a straight answer: who designs it, who builds it, who owns it. In-house die making covers progressive and deep-drawing dies; ownership and storage terms belong in the contract before you cut the die.

Step 6: The Trial Run

One sample proves the design; a trial run proves the process. The first batch run at production speed exposes springback, burr, and cycle-time issues that a single prototype hides. This is where a supplier earns its keep — fixing issues in days, not weeks.

In Production: Consistency, Traceability, and the Long Run

Volume is where sheet metal fabrication for OEM manufacturers wins or loses relationships. Three things have to hold for years, not for one order.

Step 7: Batch Consistency — What OEM Sheet Metal Fabrication Lives On

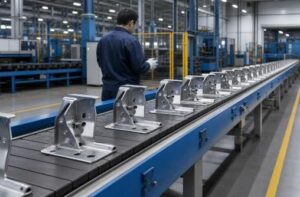

Your assembly line cannot tell batch one from batch ten. Ask how dimensional drift is controlled: in-process inspection on critical features, sheet metal tolerances verified against the drawing, and inspection points that catch drift before it ships.

Step 8: Documentation and Traceability

Every batch should leave a file trail: material certificates, FAI records, in-process inspection records, and batch traceability. If a supplier cannot produce the file set on request, it will not exist after a year of production either.

Step 9: Supply Continuity

The order ends; the relationship starts. Lead times that hold, reorder logic for critical parts, capacity that scales when your volume grows — and a partner you can evaluate against a full framework. Our OEM partner evaluation guide lists the criteria that separate a long-term partner from a one-order vendor.

How the Journey Looks at Our Plant

We have been a sheet metal fabrication for OEM manufacturers partner in the Nanpi cluster since 1999, and this is the journey as we run it:

• Before the quote: nineteen engineers review your drawing and respond with DFM feedback within 24 working hours.
• At the prototype: FAI per project requirements, critical dimensions on CMM at high accuracy — the sample arrives with its evidence.
• Through tooling: in-house die design and manufacturing, with revisions measured in days; ownership defined in the contract.
• In production: ISO 9001:2015, process inspection, batch traceability — and 38 presses (80–400 tons) holding the same drawing, batch after batch.

70,000+ part numbers delivered to 3,000+ customers in 100+ countries. Send us your drawings — we will walk your order through the journey, step by step.

Questions? Contact us — or upload your drawings to get started.
